Site：Home> Products > Stainless Steel Motor

NEMA STAINLESS STEEL MOTOR

Frames from 56 to 256T. (All TEFC construction except 56 frame which is TENV). Motors can be supplied with standard C flanges. IP67.

Description

Perf. Data

Dimensions

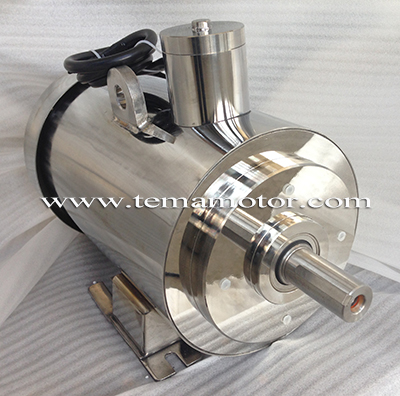

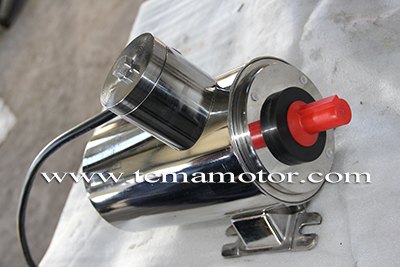

Product Display

The motors of this series are totally enclosed fan cooled three phase asynchronous motors that meet NEMA premium efficiency and dimension standards.

Class F Insulation as standard.

Power from 0.33Hp to 20Hp.

All external surfaces are 304 Stainless Steel except the shaft which is 420 Stainless Steel.

The end covers are screwed into the motor frame with a machined thread and sealed with an O ring.

There are no “through bolts” and the motors are easy to keep clean.

NEMA 60Hz Stainless Steel Frames NEMA
HP	kW	RPM	Frame	Encl.	Amps		Torque	Efficiency(%)		Power Factor		Bearings		Aprx.WL.
HP	kW	RPM	Frame	Encl.	FL	LR	Lb Ft	3/4	FL	3/4	FL	DE	ODE	Aprx.WL.
0.5	0.37	3500	56C	TENV	0.69	5.24	0.75	82.8	83	0.78	0.81	6206 2RS C3	6206 ZZ C3	26
0.5	0.37	1750	56C	TENV	0.73	5.21	1.5	82.6	82.5	0.72	0.77	6206 2RS C3	6206 ZZ C3	26.5
0.75	0.55	3500	56C	TENV	1.02	10.3	1.1	83.2	85.5	0.75	0.79	6206 2RS C3	6206 ZZ C3	26.5
0.75	0.55	1750	56C	TENV	1.05	8.4	2.22	86.4	85	0.74	0.77	6206 2RS C3	6206 ZZ C3	27
1	0.75	3500	56C	TENV	1.35	10.4	1.77	83.8	84	0.77	0.81	6206 2RS C3	6206 ZZ C3	27.5
1	0.75	1750	56C	TENV	1.4	9.9	3.02	84.5	86	0.75	0.78	6206 2RS C3	6206 ZZ C3	28.5
1.5	1.1	3510	56C	TENV	1.92	17.3	2.21	85.4	84.8	0.83	0.85	6206 2RS C3	6206 ZZ C3	29.5
1.5	1.1	1750	145TC	TEFC	2.1	18.5	4.43	85.6	87.5	0.7	0.75	6206 2RS C3	6206 ZZ C3	30
2	1.5	3500	145TC	TEFC	2.6	24	3.01	85	86.8	0.84	0.85	6206 2RS C3	6206 ZZ C3	30
2	1.5	1750	145TC	TEFC	2.8	24.3	6.04	85	87	0.73	0.77	6206 2RS C3	6206 ZZ C3	31
3	2.2	3530	145TC	TEFC	3.7	33.4	4.4	84.2	86.8	0.84	0.87	6206 2RS C3	6206 ZZ C3	30
3	2.2	1760	182TC	TEFC	4.1	38.8	8.7	90	89.6	0.73	0.76	6208 2RS C3	6208 ZZ C3	47
5	3.7	3530	184TC	TEFC	6	64.6	7.37	86.8	89.7	0.84	0.87	6208 2RS C3	6208 ZZ C3	47
5	3.7	1760	184TC	TEFC	6.7	56	14.7	90.2	90	0.73	0.77	6208 2RS C3	6208 ZZ C3	47
7.5	5.6	3540	213TC	TEFC	8.7	90	10.9	87.8	90	0.89	0.9	6309 2RS C3	6309 ZZ C3	85
7.5	5.6	1760	213TC	TEFC	9.3	82.3	22	90.3	92	0.77	0.82	6309 2RS C3	6309 ZZ C3	81
10	7.5	3540	215TC	TEFC	11.4	110	14.9	90.1	90.5	0.9	0.91	6309 2RS C3	6309 ZZ C3	85
10	7.5	1760	215TC	TEFC	12.3	93.5	30	92.1	92	0.82	0.83	6309 2RS C3	6309 ZZ C3	94
15	11	3560	254TC	TEFC	16.6	190	21.8	91.2	91.5	0.9	0.91	6309 2RS C3	6309 ZZ C3	143
15	11	1775	254TC	TEFC	18.6	145	43.7	92.1	92.6	0.78	0.8	6309 2RS C3	6309 ZZ C3	140
20	15	3560	256TC	TEFC	23.1	289	29.6	89.2	91.4	0.87	0.89	6309 2RS C3	6309 ZZ C3	143
20	15	1775	256TC	TEFC	24.9	176	59.5	93.2	93.4	0.81	0.82	6309 2RS C3	6309 ZZ C3	153

Frame	A	B	C	D	E	2F	H	U	V	AH	AJ	BF	AB
Frame	A	B	C	D	E	2F	H	U	V	AH	AJ	BF	AB
56	6.50	4.50	16.54	3.50	2.44	3.00	0.34	0.625	1.88			3/8-16	6.34
56C	6.50	4.50	16.54	3.50	2.44	3.00	0.34	0.625	1.88	2.06	5.88	3/8-16	6.34
143T	6.50	5.94	16.81	3.50	2.75	4.00	0.34	0.875	2.25			3/8-16	6.34
143TC	6.50	5.94	16.81	3.50	2.75	4.00	0.34	0.875	2.25	2.12	5.88	3/8-16	6.34
145T	6.50	5.94	16.81	3.50	2.75	5.00	0.34	0.875	2.25			3/8-16	6.34
145TC	6.50	5.94	16.81	3.50	2.75	5.00	0.34	0.875	2.25	2.12	5.88	3/8-16	6.34
182T	8.63	6.50	19.88	4.50	3.75	4.50	0.41	1.125	2.75			1/2-13	7.90
182TC	8.63	6.50	19.88	4.50	3.75	4.50	0.41	1.125	2.75	2.62	7.25	1/2-13	7.90
184T	8.63	6.50	19.88	4.50	3.75	5.50	0.41	1.125	2.75			1/2-13	7.90
184TC	8.63	6.50	19.88	4.50	3.75	5.50	0.41	1.125	2.75	2.62	7.25	1/2-13	7.90
213T	9.50	8.00	24.51	5.25	4.25	5.50	0.41	1.375	3.37			1/2-13	8.55
213TC	9.50	8.00	24.51	5.25	4.25	5.50	0.41	1.375	3.37	3.12	7.25	1/2-13	8.55
215T	9.50	8.00	24.51	5.25	4.25	7.00	0.41	1.375	3.37			1/2-13	8.55
215TC	9.50	8.00	24.51	5.25	4.25	7.00	0.41	1.375	3.37	3.12	7.25	1/2-13	8.55
254TC	11.25	9.50	30.70	6.25	5.00	8.25	0.53	1.625	4.00	3.75	7.25	1/2-13	10.25
256TC	11.25	11.25	30.7	6.25	5.00	10.00	0.53	1.625	4.00	3.75	7.25	1/2-13	10.25

Frame	HD	AK	BA	BB	BD	ES	G	K	AA	BH	Encl.
Frame	HD	AK	BA	BB	BD	ES	G	K	NPT	BH	Encl.
56	9.84		2.75			1.41	0.517	0.188	1/2"	6.4	TENV
56C	9.84	4.5	2.75	0.12	6.5	1.41	0.517	0.188	1/2"	6.4	TENV
143T	9.84		2.25			1.41	0.771	0.188	1/2"	6.8	TEFC
143TC	9.84	4.5	2.75	0.12	6.5	1.41	0.771	0.188	1/2"	6.8	TEFC
145T	9.84		2.25			1.41	0.771	0.188	1/2"	6.8	TEFC
145TC	9.84	4.5	2.75	0.12	6.5	1.41	0.771	0.188	1/2"	6.8	TEFC
182T	12.4		2.75			1.78	0.986	0.25	3/4"	9.4	TEFC
182TC	12.4	8.5	3.50	0.25	8.9	1.78	0.986	0.25	3/4"	9.4	TEFC
184T	12.4		2.75			1.78	0.986	0.25	3/4"	9.4	TEFC
184TC	12.4	8.5	3.50	0.25	8.9	1.78	0.986	0.25	3/4"	9.4	TEFC
213T	13.8		3.50			2.41	1.201	0.312	3/4"	11.0	TEFC
213TC	13.8	8.5	4.50	0.25	9.0	2.41	1.201	0.312	3/4"	11.0	TEFC
215T	13.8		3.50			2.41	1.201	0.312	3/4"	11.0	TEFC
215TC	13.8	8.5	4.50	0.25	9.0	2.41	1.201	0.312	3/4"	11.0	TEFC
254TC	16.5	8.5	4.75	0.25	9.0	2.91	1.416	0.375	3/4"	12.3	TEFC
256TC	16.5	8.5	4.75	0.25	10.0	2.91	1.416	0.375	3/4"	12.3	TEFC
NOTE: Dimension for reference only.
