IE2系列 60HZ TEFC 電機
主要描述
性能數據
產品尺寸
產品展示
該系列電機為全封閉的三相鼠籠式異步電動機。電氣性能和安裝尺寸均符合的國際電工委員會IEC60034.2.1:2007方法A要求的測試。所有電機都適合用變頻器驅動。如果客戶要求，可采用特殊變頻負載電磁線制作繞組。所有電機均在繞組內配150度的熱敏電阻。采用F級絕緣。該機型電機軸、機殼、端蓋、螺絲等結構部件均采用不銹鋼材料，外表美觀，光亮，無腐蝕，無鐵銹，清潔衛生，機座和端蓋采用螺紋聯接和O型圈密封結構，端蓋隱含在機座內部，不同于傳統電機結構，減少零件之間的縫隙，避免殘留污物，易清洗，可廣泛應用于食品，化工等行業。
| 2極60Hz不銹鋼電機 IE2標準 (EFF1) (MEPS2) | |||||||||||||||||||
| 2 Pole 60Hz Stainless Steel Frames IE2 (EFF1) (MEPS2) | |||||||||||||||||||
| 型號 | 輸出功率 | 額定轉速 | 額定電流 | 效率 | 功率因數 | 額定轉矩 | 堵轉電流/額定電流 | 堵轉轉矩/額定轉矩 | 最大轉矩/額定轉矩 | 起動轉矩/額定轉矩 | 轉動慣量 | 噪音等級 | 重量 | ||||||
| MOTOR TYPE | OUTPUT kW | FULL LOAD SPEED (RPM) | IFL 440V (AMPS) | IFL 460V (AMPS) | IFL 480V (AMPS) | EFFICIENCY @ | POWER FACTOR@ | FULL LOAD TORQUE (Nm) | IST/IFL | TST/TFL | TPU/TFL | TM/TFL | Mofl J （kgm2) | NOISE LEVEL Lp 1m dB(A) | NET WEIGHT (kg) | ||||
| 100%FL | 75%FL | 50%FL | 100%FL | 75%FL | 50%FL | ||||||||||||||
| 631-2 | 0.18 | 3400 | 0.37 | 0.35 | 0.33 | 76.8 | 77.5 | 74 | 0.83 | 0.8 | 0.7 | 0.5 | 5.1 | 2.4 | 3.1 | 2.1 | 0.00031 | 62 | 10 |
| 632-2 | 0.25 | 3400 | 0.52 | 0.5 | 0.48 | 77.8 | 78.5 | 75 | 0.8 | 0.76 | 0.67 | 0.7 | 6 | 2.9 | 3.5 | 2.3 | 0.0006 | 61 | 10 |
| 711-2 | 0.37 | 3495 | 0.74 | 0.71 | 0.68 | 80.7 | 81 | 78 | 0.81 | 0.76 | 0.66 | 1.0 | 6.5 | 2.8 | 3.2 | 2.4 | 0.0006 | 55 | 13.5 |
| 712-2 | 0.55 | 3465 | 1.1 | 1 | 0.96 | 81 | 81.5 | 77 | 0.85 | 0.82 | 0.7 | 1.5 | 6.6 | 2.6 | 3.3 | 2.4 | 0.0008 | 56 | 13.5 |
| 801-2 | 0.75 | 3500 | 1.4 | 1.3 | 1.2 | 86 | 86.5 | 83 | 0.83 | 0.8 | 0.73 | 2.1 | 5.2 | 2.9 | 3.5 | 2.4 | 0.0012 | 61 | 20.5 |
| 802-2 | 1.1 | 3485 | 2.1 | 2 | 1.9 | 85.3 | 86 | 82 | 0.83 | 0.8 | 0.73 | 3.0 | 6.5 | 2.8 | 3.4 | 2.4 | 0.0012 | 61 | 20.5 |
| 90S-2 | 1.5 | 3500 | 2.6 | 2.5 | 2.4 | 86.3 | 87 | 83 | 0.89 | 0.86 | 0.8 | 4.1 | 6.3 | 2.3 | 3.4 | 2 | 0.0039 | 65 | 29.5 |
| 90L-2 | 2.2 | 3480 | 3.8 | 3.6 | 3.5 | 86 | 86.5 | 81 | 0.9 | 0.87 | 0.79 | 6.1 | 6.3 | 2.2 | 3 | 1.9 | 0.0039 | 65 | 29.5 |
| 100L-2 | 3 | 3490 | 5 | 4.7 | 4.6 | 86.9 | 87.5 | 83 | 0.93 | 0.9 | 0.83 | 8.3 | 6.4 | 2.4 | 2.8 | 2.1 | 0.0055 | 70 | 36 |
| 112M1-2 | 4 | 3455 | 6.5 | 6.2 | 5.9 | 88.3 | 89 | 83 | 0.92 | 0.89 | 0.81 | 10.8 | 6.4 | 2.3 | 2.8 | 2.1 | 0.0055 | 74 | 46 |
| 112M2-2 | 5.5 | 3455 | 8.9 | 8.5 | 8.1 | 88.7 | 89 | 83 | 0.92 | 0.89 | 0.81 | 14.8 | 6.5 | 2.4 | 2.8 | 2.2 | 0.0109 | 78 | 46 |
| 132S1-2 | 5.5 | 3535 | 8.5 | 8.1 | 7.8 | 90 | 90.2 | 84 | 0.95 | 0.92 | 0.85 | 14.9 | 6.6 | 1.7 | 2.5 | 1.5 | 0.027 | 80 | 83 |
| 132S2-2 | 7.5 | 3530 | 11.5 | 11 | 10.5 | 90.7 | 91 | 86 | 0.94 | 0.91 | 0.85 | 20.4 | 6.6 | 1.8 | 2.8 | 1.7 | 0.028 | 81 | 83 |
| 132M-2 | 11 | 3520 | 16.9 | 16.2 | 15.5 | 90.9 | 91.5 | 86.5 | 0.94 | 0.91 | 0.85 | 30.0 | 4.5 | 1.8 | 2.8 | 1.6 | 0.031 | 82 | 96.5 |
| 160M1-2 | 11 | 3555 | 17.1 | 16.4 | 15.7 | 91.5 | 92 | 88 | 0.92 | 0.88 | 0.81 | 29.6 | 6.2 | 2 | 3.7 | 1.9 | 0.039 | 80 | 133 |
| 160M2-2 | 15 | 3555 | 23.6 | 22.6 | 21.7 | 91.4 | 92 | 88 | 0.91 | 0.87 | 0.79 | 40.3 | 6.5 | 2.1 | 3.6 | 1.9 | 0.039 | 81 | 133 |
| 160L-2 | 18.5 | 3555 | 29.2 | 27.9 | 26.7 | 91.4 | 92 | 88 | 0.91 | 0.87 | 0.79 | 49.7 | 6.3 | 2.3 | 3.7 | 2.1 | 0.046 | 81 | 144 |
4極60Hz不銹鋼電機 IE2標準 (EFF1) (MEPS2)
4 Pole 60Hz Stainless Steel Frames IE2 (EFF1)
(MEPS2)
型號
輸出功率
額定轉速
額定電流
效率
功率因數
額定轉矩
堵轉電流/額定電流
堵轉轉矩/額定轉矩
最大轉矩/額定轉矩
起動轉矩/額定轉矩
轉動慣量
噪音等級
重量
MOTOR
TYPE
OUTPUT kW
FULL LOAD SPEED (RPM)
IFL 440V (AMPS)
IFL 460V (AMPS)
IFL 480V (AMPS)
EFFICIENCY @
POWER FACTOR@
FULL LOAD TORQUE (Nm)
IST/IFL
TST/TFL
TPU/TFL
TM/TFL
Mofl J （kgm2)
NOISE LEVEL Lp 1m dB(A)
NET WEIGHT (kg)
100%FL
75%FL
50%FL
100%FL
75%FL
50%FL
631-4
0.12
1675
0.29
0.28
0.27
74.4
75
72
0.73
0.7
0.62
0.7
4
2.2
2.8
1.9
0.0005
47
10
632-4
0.18
1675
0.44
0.42
0.4
75.1
75.5
72
0.72
0.69
0.62
1.0
4.1
2.4
3
2.1
0.0005
48
10
711-4
0.25
1725
0.58
0.55
0.53
79.4
80
77
0.72
0.69
0.62
1.4
5.1
2.2
3.2
2
0.0014
60
13.5
712-4
0.37
1720
0.84
0.8
0.77
79.3
80
77
0.73
0.7
0.62
2.1
5.2
2.4
3.1
2.1
0.0014
61
13.5
801-4
0.55
1725
1.2
1.1
1.1
81.3
81.5
77
0.76
0.71
0.59
3.0
5.5
2.4
2.9
1.9
0.0023
61
20
802-4
0.75
1715
1.6
1.5
1.4
81.8
82
79
0.77
0.74
0.61
4.2
5.6
2.6
2.8
2.1
0.0023
62
20
90S-4
1.1
1740
2.1
2
1.9
85
85.5
82
0.8
0.77
0.65
6.1
6.3
2.3
3.3
1.8
0.0062
60
29
90L-4
1.5
1735
2.9
2.8
2.7
85.3
86
83
0.8
0.77
0.65
8.2
6.4
2.5
3.2
2.1
0.0062
62
29
100L1-4
2.2
1750
4
3.8
3.6
88
88.5
85
0.82
0.79
0.69
12.1
6.5
2
3.1
1.9
0.0096
61
43
100L2-4
3
1745
5.4
5.2
5
88.1
88.5
85
0.82
0.78
0.69
16.4
6.6
2.2
3
1.9
0.0096
62
43
112M-4
4
1760
7.2
6.9
6.6
89.1
90
86
0.82
0.78
0.7
21.8
6.5
2.1
3.1
1.9
0.0214
63
50
132S-4
5.5
1755
9.2
8.8
8.4
90
91
88
0.87
0.84
0.72
29.9
6.5
2.1
2.8
1.8
0.044
68
79.5
132M1-4
7.5
1750
12.6
12.3
11.8
90
91
88
0.85
0.82
0.7
40.7
6.5
2.3
2.8
1.8
0.051
69
89.5
132M2-4
11
1750
18.3
17.5
16.8
90.6
91
88
0.87
0.84
0.73
60.2
6.5
2.2
2.8
1.8
0.07
71
109.5
160M-4
11
1775
18.4
17.6
16.9
92.1
92.5
89
0.85
0.82
0.74
59.2
6.5
2.3
3.6
2.1
0.075
72
139
160L-4
15
1770
25.1
24
23
92.2
93
90
0.85
0.82
0.73
80.9
6.5
2.3
3.3
1.9
0.093
74
152
6極60Hz不銹鋼電機 IE2標準 (EFF1) (MEPS2)
6 Pole 60Hz Stainless Steel Frames IE2 (EFF1)
(MEPS2)
型號
輸出功率
額定轉速
額定電流
效率
功率因數
額定轉矩
堵轉電流/額定電流
堵轉轉矩/額定轉矩
最大轉矩/額定轉矩
起動轉矩/額定轉矩
轉動慣量
噪音等級
重量
MOTOR
TYPE
OUTPUT kW
FULL LOAD SPEED (RPM)
IFL 440V (AMPS)
IFL 460V (AMPS)
IFL 480V (AMPS)
EFFICIENCY @
POWER FACTOR@
FULL LOAD TORQUE (Nm)
IST/IFL
TST/TFL
TPU/TFL
TM/TFL
Mofl J （kgm2)
NOISE LEVEL Lp 1m dB(A)
NET WEIGHT (kg)
100%FL
75%FL
50%FL
100%FL
75%FL
50%FL
711-6
0.18
1125
0.48
0.46
0.44
74.2
75
72
0.66
0.63
0.53
1.6
3.8
2.2
3
1.9
0.0016
50
14
712-6
0.25
1125
0.65
0.62
0.59
75.6
76
73
0.67
0.63
0.54
2.2
3.8
1.8
3
1.8
0.0021
51
16
801-6
0.37
1135
0.86
0.82
0.79
79.3
80
76
0.71
0.66
0.58
3.1
4.1
1.9
2.8
1.6
0.003
53
22
802-6
0.55
1135
1.3
1.2
1.2
81.1
81.3
77
0.71
0.67
0.58
4.6
4.1
2
2.9
1.8
0.0041
54
26
90S-6
0.75
1145
1.6
1.5
1.4
82.2
82.5
80
0.76
0.73
0.65
6.3
4.9
2.1
2.6
1.8
0.012
56
29
90L-6
1.1
1140
2.3
2.2
2.1
82.7
83
80
0.77
0.74
0.65
9.2
5
2.1
2.4
1.8
0.014
57
29
100L-6
1.5
1155
3
2.9
2.8
85.2
86
83
0.76
0.73
0.63
12.5
5.4
2
2.6
1.8
0.0091
60
43
112M-6
2.2
1170
4.2
4
3.8
88.1
88.5
85
0.79
0.76
0.66
17.9
6.4
2
3.1
1.8
0.027
63
50
132S-6
3
1150
5.8
5.5
5.3
88.6
89
85
0.77
0.74
0.64
24.7
5.6
1.4
2.5
1.3
0.051
66
90
132M1-6
4
1140
7.6
7.3
7
88.3
89
85
0.78
0.75
0.66
33.4
5
1.4
2.3
1.3
0.051
67
91
132M2-6
5.5
1150
10.2
9.8
9.4
90.2
90.5
87
0.78
0.75
0.66
45.6
6
1.7
2.6
1.4
0.072
69
105
160M-6
7.5
1180
12.7
12.1
11.6
91.8
92
89
0.85
0.82
0.72
60.8
6.5
1.6
2.6
1.7
0.096
71
119
160L-6
11
1180
18.3
17.5
16.8
91.7
92
89
0.86
0.82
0.72
89.2
6.5
2
2.8
1.7
0.096
73
119
| Frame | A | AA | AB | BB | HA | B | B1 | C | D | DH | E | F | G | H | HD | K | KK | ||
| METRIC | |||||||||||||||||||
| 63 | 100 | 32 | 132 | 110 | 4 | 80 | N/A | 40 | 11 | M3 | 23 | 4 | 8.5 | 63 | 190 | 7 | 2-M20×1.5 | ||
| 71 | 112 | 30 | 140 | 120 | 4 | 90 | N/A | 45 | 14 | M4 | 30 | 5 | 11 | 71 | 205 | 7 | 2-M20×1.5 | ||
| 80 | 125 | 38 | 165 | 130 | 4 | 100 | N/A | 50 | 19 | M6 | 40 | 6 | 15.5 | 80 | 230 | 10 | 2-M20×1.5 | ||
| 90 | 140 | 40 | 180 | 165 | 4 | 100 | 125 | 56 | 24 | M6 | 50 | 8 | 20 | 90 | 250 | 10 | 2-M20×1.5 | ||
| 100 | 160 | 45 | 205 | 180 | 4 | 140 | N/A | 63 | 28 | M10 | 60 | 8 | 24 | 100 | 280 | 12 | 2-M20×1.5 | ||
| 112 | 190 | 60 | 250 | 180 | 5 | 140 | N/A | 70 | 28 | M10 | 60 | 8 | 24 | 112 | 315 | 13 | 2-M25×1.5 | ||
| 132 | 216 | 60 | 276 | 218 | 5 | 140 | 178 | 89 | 38 | M12 | 80 | 10 | 33 | 132 | 350 | 13 | 2-M25×1.5 | ||
| 160 | 254 | 65 | 300 | 299 | 8 | 210 | 254 | 108 | 42 | M16 | 110 | 12 | 37 | 160 | 420 | 15 | 2-M25×1.5 | ||
Frame
AD
AE
ED
L
M
N
P
S
T
AC
SS
TEFC
B5
B14A
B5
B14A
B5
B14A
B5
B14A
B5
B14A
TEFC
63
128
Φ65
13
285
115
75
95
60
140
95
10
M5
3.5
2.5
133
71
135
Φ65
20
325
130
85
110
70
160
105
10
M6
3.5
2.5
150
80
150
Φ75
25
330
165
100
130
80
200
120
12
M6
3.5
3
165
90
160
Φ75
40
385
165
115
130
95
200
140
12
M8
3.5
3
190
100
185
Φ85
45
450
215
130
180
110
250
160
15
M8
4
3.5
210
112
203
Φ85
45
480
215
130
180
110
250
160
15
M8
4
3.5
240
132
215
Φ85
63
617
265
165
230
130
300
200
15
M10
4
4
280
160
260
Φ100
90
720
300
-
250
-
350
-
19
-
5
-
330
 |

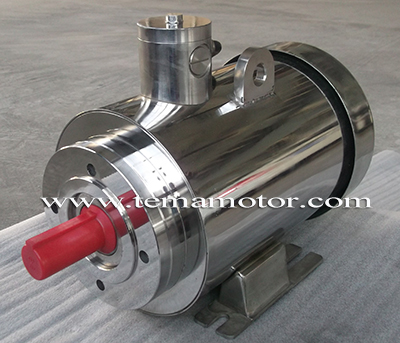

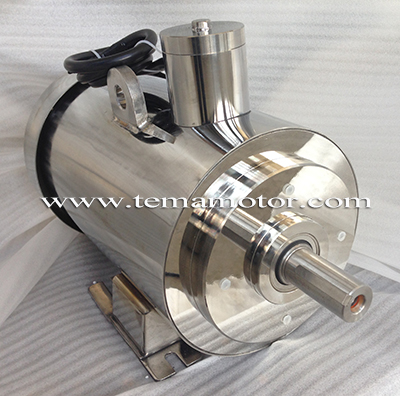

SS132 B3 TEFC 不銹鋼電機 帶接線盒 帶底腳?？蛇x配B5/B14法蘭. |
 |
SS112 B3 TEFC 不銹鋼電機 帶接線盒 帶底腳。可選配B5/B14法蘭. |
 |
SS90 B3 TEFC 不銹鋼電機 帶接線盒 帶底腳?？蛇x配B5/B14法蘭. |
